·12 bit I&Q quantization

·Flexible 10-60 MHz bandwidth

·Wide frequency range

·High speed data transmission

·Over 7TB of internal storage

·SatGen can be used for custom simulation

Recording, replaying, and simulating advanced global navigation satellite system testing scenarios has never been easier.

Advanced GNSS signal testing with precise customization capabilities

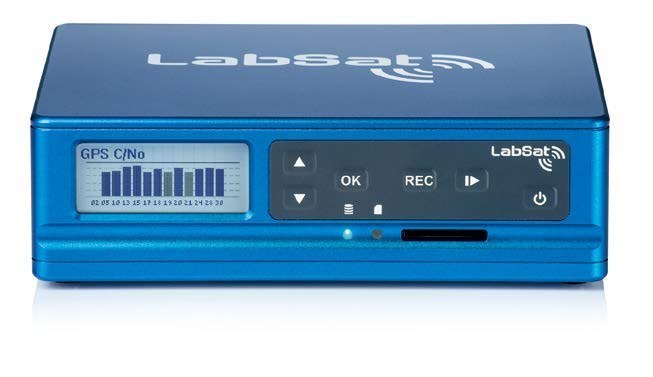

Introducing LabSat 4, an advanced global navigation satellite system recording, playback, and simulation system designed to capture and simulate signals in the L-band and S-band. Customize each of the three RF channels separately, allowing for precise adjustment of quantization (up to 12 bits per signal) and variable bandwidth (10-60 MHz). It has external data integration (including CAN, CAN-FD, RS232, and digital event capture), customizable record settings that can be saved, and the ability to easily configure and operate through a user-friendly web interface.

LabSat 4 can record and replay the following signals:

Global Positioning System: L1/L2/L5

Galileo E1, E5a/b, E6

GLONASS G1, G2, G3

Beidou B1, B2a/b, B3

• QZSS L1, L2, L5, L6

NavIC L1, L5, S bands

SBAS L1 and L5 can use network interfaces to configure the upper and lower L-bands as well as other signals in the S-band. Customization requirements can be provided upon request, such as iridium and Sirius XM radio frequencies.

Product Features

12 Bit I & Q

Record I&Q signal data with 12 bit quantization

High speed data transmission

Use USB 3 and Gigabit Ethernet to move data between internal storage devices

Flexible 60 MHz bandwidth

Allocate specific bandwidth to each RF channel during the recording process to reduce file size

Multi system synchronization

Allow precise synchronization of recording and playback using multiple LabSat 4 systems

Wide frequency range

Allocate specific bandwidth to each RF channel during the recording process to reduce file size

Backward compatibility

Scenes recorded on LabSat 3 broadband can be replayed on LabSat 4

Product specifications
