Wheel Loader

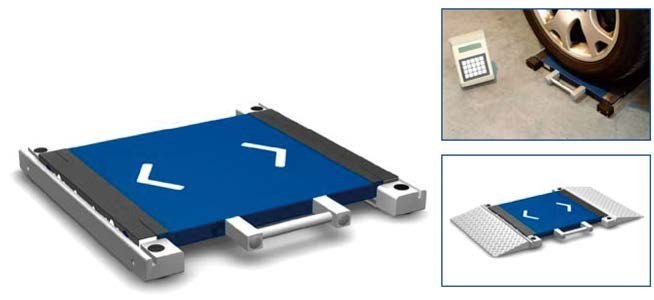

It is a very good portable weighing instrument, 4 weighing instruments can work at the same time and connected to an external display, which can measure and display the weight of a single wheel, axle weight and the whole vehicle at the same time. At the same time, the wheel can be accurately measured without centering on the weighing plate, which is convenient and quick.
The features of the whole set of equipment are:
◆ The measurement results are very accurate;
◆ Light weight, one person can operate and use;
◆ High protection level, good reliability, can be overloaded.
Ride Test Accelerometer
Piezoelectric triaxial acceleration sensor is widely used in ride comfort test. Combined with the data acquisition instrument, it can complete the data collection of GB/T 4790 automobile ride comfort test. In addition, Zeer also customized the calculation for the national standard ride comfort test for customers. The software can directly output the results and test reports.
Product Model | ZR 730A | ZR 890 |
Encapsulation | Titanium, 4-Pin 1/4-28 Connector Nitrile, | Integral Cable Connection |
Range (±g) | 50, 100, 500, 2000 | 2, 5, 10, 50 |
Sensitivity (mV/g) | 100, 50, 10, 2.5 | 1000, 400, 200, 40 |
Frequency Response (Hz, ±3dB) | 0.5 - 11000 | 0 - 400 |
Shock limit (±g) | 5000 | 5000 |
Operating temperature (℃ ) | -55~125℃ | -45~85℃ |
Weight (g) | 4.3 | 380 |
Dimensions (g) | 14.9 x 10.2 x 10.2 | Φ200 x 12 |
Features | small and compact | static response |
low impedance | vehicle drive test | |
Triaxial measurement | inertial motion low frequency environment | |
Applications | flight , satellite test , HUMS, NVH | flight test , aircraft |
Road spectrum acquisition acceleration sensor
DC MEMS accelerometer is used for vehicle road spectrum data collection, combined with data acquisition instrument, it can be applied to road spectrum data collection under various working conditions.
Product Model | ZR 839 | ZR 819 |
Encapsulation | Tanodized aluminum, integral cable connection | anodized aluminum, integral cable connection |
Range (±g) | 2, 5, 10, 20, 30, 50, 100, 500 | 2, 5, 10, 20, 50, 100 |
Sensitivity (mV/g) | 1000, 400, 200, 100, 67, 40, 20, 4 | 1000, 400, 200 100, 40, 20 mV/g, |
Frequency Response (Hz, ±3dB) | 0 - 10000 | 0 - 10000 |
Shock limit (±g) | 5000 | 5000 |
Operating temperature | -40~125℃ | -40~125℃ |
Weight (g) | 17 (without cables) | 12 (without cables) |
Dimensions (g) | 25 x 25 x 20 | 25 x 25 x 10 |
Features | static response | static response |
high frequency response | high frequency response | |
Ultra low noise | Ultra low noise | |
Applications | flight , aircraft | flight test , aircraft |
Pressure Sensor
Zeer's self-made pressure sensor can be used in vehicle braking test, measuring brake line pressure and vacuum degree, and can also be widely used in pressure testing in the field of construction machinery. The range covers zero pressure, negative pressure, 0-2000Bar, Special ranges can be customized.
Product Model | ZR P1501 | ZR P1502 | ZR P1503 | ZR P1504 | ZR P1505 |
Pressure range | 0 - 3.5 to 2K bar Gauge | 0 - 3.5 to 2K bar Gauge | 0 - 3.5 to 2K bar Gauge | 0 - 3.5 to 2K bar Gauge | 0 - 3.5 to 2K bar Gauge |
output range | 0.5-4.5V, 4-20mA, 1.0-5.0V, 0-10V, 0-5V | 0.5-4.5V, 4-20mA, 1.0-5.0V, 0-10V, 0-5V | 0.5-4.5V, 4-20mA, 1.0-5.0V, 0-10V, 0-5V | 0.5-4.5V, 4-20mA, 1.0-5.0V, 0-10V, 0-5V | 0.5-4.5V, 4-20mA, 1.0-5.0V, 0-10V, 0-5V |
Accuracy (%FS) | +/-0.5% BFSL | +/-0.5% BFSL | +/-0.5% BFSL | +/-0.5% BFSL | +/-0.5% BFSL |
Operating temperature (℃ ) | -40℃ ~125℃ | -40℃ ~125℃ | -40℃ ~125℃ | -40℃ ~125℃ | -40℃ ~125℃ |
Dimensions (mm) | 85.5 | 85.5 | 77 (excluding cables) | 62 | 62 (excluding cables) |
Overload Pressure | 5 X Span Pressure | 5 X Span Pressure | 5 X Span Pressure | 5 X Span Pressure | 5 X Span Pressure |
typical application | Plastic and Alloy Injection Machines Test and Measurement Equipment factory automation energy management system heavy industry | Plastic and Alloy Injection Machines Test and Measurement Equipment factory automation energy management system heavy industry | Plastic and Alloy Injection Machines Test and Measurement Equipment factory automation energy management system heavy industry | Plastic and Alloy Injection Machines Test and Measurement Equipment factory automation energy management system heavy industry | Plastic and Alloy Injection Machines Test and Measurement Equipment factory automation energy management system heavy industry |
Tire temperature tire pressure sensor
Tire temperature and tire pressure sensor is a device that can detect tire pressure and temperature in real time. This device provides 1 high-precision air pressure sensor for detecting the air pressure of the tire, and 3 high-precision temperature measurement channels for collecting the temperature of the tire, and the measurement data of the device is output through the CAN interface. This device has a built-in large-capacity battery. It is easy to use without removing the battery when using it. It also has a remaining power prompt function, which avoids the user's trouble due to inability to estimate the use time because he does not know how much power is left, thus affecting the test results.
Main features:
For 16 channels, four slaves, each slave with 3 thermocouple channels, 1 air pressure measurement channel;
The air pressure measurement accuracy error is 0.015kpa;
Temperature measurement accuracy error 0.05%FS;
Each channel has internal cold junction compensation;
The air pressure and temperature of the detection point are sent to the receiving end wirelessly, and the CAN message is output.
Number of channels | 16 (four slaves, 3 thermocouple channels each, 1 barometric pressure measurement channel) | |
Maximum input overvoltage protection | ±45V | |
ADC Type Air | Pressure: 24-bit ADC, Temperature: 19-bit ADC | |
Power supply voltage | Slave charging: AC220V | Host power supply: DC9~36V power supply |
Measurement data update rate | 10Hz | |
Signal filtering | Low-pass filtering 50HZ | |
IP rating | IP65 | |
Transmitter and receiver wireless communication frequency | 433Mhz |
Range | 0~1000kpa |
Full scale linearity error | ±5kpa |
Accuracy | 0.015kpa |
Thermocouple Type | K, J, N, R, S, T, E, B |
Type K measuring range | -200°C to +1372°C |
Type J measuring range | -210℃ to +1200℃ |
Type N measuring range | -200°C to +1300°C |
Type R measuring range | -50° C to +1768° C |
Type S measuring range | -50° C to +1768° C |
T-type measuring range | -200° C to +400° C |
Type E measuring range | -200° C to +1000° C |
Type B measuring range | -250° C to +1820° C |

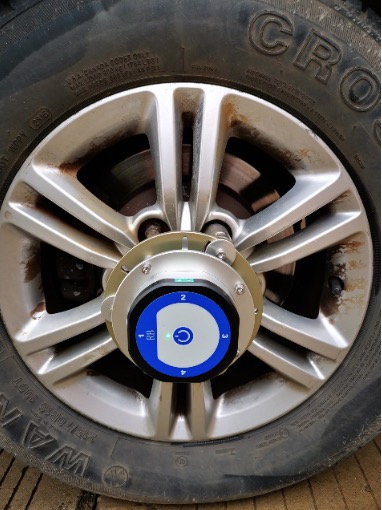

Wireless wheel speed sensor
Wireless wheel speed sensor
The system is an innovative system for wirelessly measuring wheel speed and temperature without any additional mechanical connection. The system does not require a stator or additional reference points and provides measurements on test benches and outdoors, even in harsh conditions such as mud, snow and dust. The linearity of the device is typically 0.2% better. Impact on the axle also does not affect the results, fully supporting various wheel speed tests under the vehicle's dynamic performance.
The system includes four measuring modules and one receiving module. The measurement module has a built-in speed sensor, a three-channel temperature measurement module, a rechargeable battery, and a wireless transmission module. The sensor can directly obtain the wheel speed and wheel temperature on the wheel by fixing the wheel screw. The transmission protocol of the receiving module is 2.4G, and the signal and temperature of four wireless measurement modules are simultaneously received and output through the CAN protocol.
Main features:
Each system includes 4 wheel speed sensor slaves, and each slave includes 1 wheel speed measurement channel and 3 temperature channels;
Support up to ±7200 RPM;
Accuracy<0.3 % at 0℃ to 50℃;
Built-in gyro, no need for a fixed frame, easy to install;
Support various types of thermocouple signal access;
IP67 waterproof rating;
The temperature of the detection point is sent to the receiving end wirelessly, and the CAN message is output.
Wireless wheel speed sensor | |
Maximum operating speed | ±7200 RPM |
Accuracy | < 0.3 % at 0℃ to 50℃ |
Internal sampling rate | 200Hz |
Test temperature range | -20℃ to +65℃ |
Weight | 500g |
Transmission frequency | 2.4G |
Resolution | 16 bit |
Synchronization performance | Four-wheel synchronization |
Waterproof grade | IP67 |
Power supply | 40h continuous running time |
Wireless Temperature Test Module | |
Type E (NiCr-CuNi) | -60 … 900 ° C (-76 … 1652 ° F) |
Type J (Fe/CuNi) | -50 … 1000 ° C (-58 … 1832 ° F) |
Type K (NiCr/NiAl) | -60 … 1370 ° C (-76 … 2498 ° F) |
Type N (NiCrSi/NiSi) | -50 … 1300 ° C (-58 … 2372 ° F) |
Type R (Pt13Rh/Pt) | -50 … 1760 ° C (-58 … 3200 ° F) |
Type S (Pt10Rh/Pt) | -50 … 1760 ° C (-58 … 3200 ° F) |
Type T (Cu/CuNi) | -200 … 200 ° C (-328 … 392 ° F) |
Accuracy at 25 °C ambient temperature | ±0.025 %fs |
Wireless receiver parameters | |
Antenna Type | 2.4G Hz |
Output sampling rate | 100Hz |
CAN interface | CAN 2.0 |
Voltage input | 9-36Vdc |
Wireless brake pad temperature transmission module
The wireless brake pad temperature transmission module is a device that can detect the temperature of the brake pads in real time. The device is divided into a transmitter and a receiver. The transmitter detects the temperature of the brake pads in real time through a 4-channel/wheel thermocouple, transmits the temperature wirelessly to the receiver, and the receiver outputs the temperature through the CAN protocol. The equipment has the advantages of high precision, small error, high real-time performance and wide measurement range.
Main features:
1. 16-channel multi-type thermocouple input, support various types of thermocouple selection;
2. The accuracy error is 0.5℃;
3. The thermocouple input terminal provides ±45KV overvoltage protection;
4. Each channel has internal cold junction compensation;
5. The temperature of the detection point is sent to the receiving end wirelessly, and the CAN message is output.
System parameters | |
Number of channels | 16 (four transmitters, each with 4 thermocouple channels) |
Maximum input overvoltage protection | ±45V |
ADC type | 19-bit ADC |
Power supply voltage | Transmitter: 3 18650 lithium battery power supply Receiver: +6 .. +42V power supply |
Internal sampling rate | 10Hz |
Measurement data update rate | 2Hz |
Signal filtering | Low-pass filtering 50HZ |
IP rating | IP67 |
Input socket | mini TC |
Transmitter and receiver wireless communication frequency | 433Mhz |
Communication protocol | CAN 2.0B |
Channel temperature | |
Thermocouple Type | K, J, N, R, S, T, E, B |
Type K measuring range | -100°C ..+1372°C |
Type J measuring range | -210℃ to +1200℃ |
Type N measuring range | -200°C to +1300°C |
Type R measuring range | -50°C to +1768° C |
Type S measuring range | -50°C to +1768° C |
T-type measuring range | -200°C to +400° C |
Type E measuring range | -200°C to +1000° C |
Type B measuring range | -250°C to +1820° C |
Full Scale Linearity Error | TA=+25℃ .. ±0.05%FS |
TA=-20℃ to +85℃ .. ±0.15%FS | |
TA=-40℃ to +105℃ .. ±0.2%FS | |
TA=-40℃ to +125℃ .. ±0.3%FS | |
TA=-55℃ to +125℃ .. ±0.35%FS | |
Linearization of sensor characteristic lines | Numerical interpolation |
Cold Junction Compensation | ±0.7°C (max, -20°C to +85°C) Cold Junction Internal Compensation Accuracy |
Device connection | |
CAN / power supply | LEMO 0B, 5-pole |
Communication protocol | CAN 2.0B |

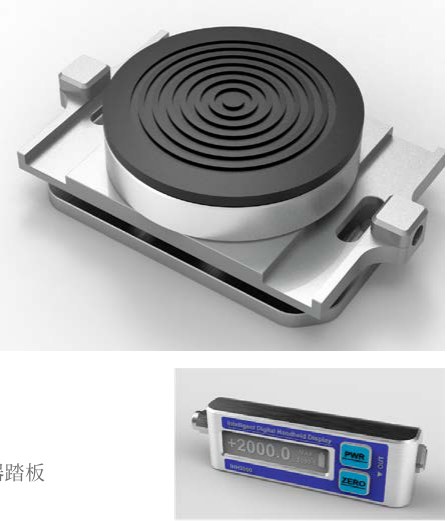

Low Profile Pedal Force Sensor
SENBR1 pedal force sensor is used for pedal load test. Its shape design allows the sensor to be easily mounted on any vehicle pedal or fatigue/durability test bench.
Since the force on the accelerator and clutch pedals varies from small cars to heavy trucks, we offer different measurement ranges from 200N to 2000N. With the internal mechanical decoupling design, the accuracy is 1%FS for different applied force point positions. In addition, a portable and compact handheld display is optional, which is convenient for real-time observation of test values, and the measurement data can be output to the data acquisition equipment through the CAN protocol or analog signal.
Main features:
1. 200 to 2000 N range;
2. Minimum nonlinearity and hysteresis ≤ 0.1%;
3. Ultra-light aluminum alloy material;
4. Low sensitivity to eccentric load<1.0%;
5. Use the attached tape to fix it to the car pedal;
6. Portable and compact handheld display;
7. Applicable to accelerator pedal, brake pedal and clutch pedal.
Handheld Display | Unit | Typical |
Dimensions | mm | 95*30*28 |
Display of the maximum value | yes | |
battery display | yes | |
Battery | Integrated rechargeable battery, continuous battery life > 24 hours | |
Display type | OLED | |
Display size | inches | 2.08 |
Display area size | mm | 50*12.8 |
Housing material | Aluminum alloy | |
Waterproof grade | IP65 | |
Working temperature | ℃ | -10 to +50 |
Pedal Force Sensor | Unit | Typical Value |
Nonlinearity | % FS | ±0.1 |
Hysteresis | % FS | ±0.1 |
Operating temperature range | ℃ | -10 to 70 |
Compensated temperature range | °C | 0 to 50 |
Measuring range | N | 500 to 2000 |
Sensitivity | mV / V | 2.0 |
Safety power supply | V | 12 |
Recommended power supply | V | 5 |
Input resistance | Ω | 700 ±3% |
Output resistance | Ω | 700 ±3% |
Cable | 3.5mm diameter, 2m long |
