Steering wheel sensor


Our SENMSW series sensors are designed specifically for modern vehicle steering wheels, such as passenger cars and multi-purpose vehicles. The introduction of a new driving assistance system requires better performance testing equipment.

Our SENMSW series sensors perfectly meet the needs of modern automotive engineering. Reducing size and weight, providing higher dynamics and increased resolution without compromising steering wheel functionality (airbags) and control components. For optimal safety, the sensor has a high breaking torque. Our SENMSW series sensors are installed between the steering wheel and the steering shaft. For versatility, sensors can be equipped with interchangeable adapters for connecting to the steering shaft transmission.

Our SENMSW series sensors are equipped with switch reset torque and angle. The offset is stored and remains available after voltage loss or restart. Through the CAN bus, the output can be set to zero at any point. Calibration data is stored in sensor components, allowing users to replace sensor components as needed.


·Integrated data acquisition unit, CAN bus output;

·Using telemetry technology to provide frictionless signal transmission;

·Low inertia product and weight load design;

·Non contact magnetoelectric steering angle sensor;

·Ultra thin thickness size design;

·With steering wheel centering adjustment function· Fast and easy installation;

·It can be equipped with a small display system.

Product application:

Universal measuring steering wheel, used to measure steering torque, steering angle, and steering speed; Used for vehicle driving dynamics testing, such as ISO 4138, steady-state circular driving.

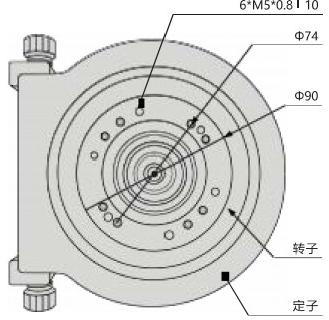

image.pngAll dimensions are in millimeters



All dimensions are in millimeters

Product parameters

performance index
source9~36 V
Filter threshold0.05 N.m
Power consumption (12V) 2.7 W
Data output rate100 Hz
AD sampling rate500 Hz
Total weight4.2 kg
Fixture weight1.7 kg
Mass moment of inertia45 kg.cm²
Working temperatur-20~80 ℃
Output protocolCAN
Measurement range±20~200 N.m
Linearity0.1 %FS
Hysteresis0.1 %FS
Maximum load150 %
Zero stable value (over 24 hours)0.01 %FSO
Temperature influence zero point value0.25 %FSO
Temperature impact index value0.25 %FSO
Steering angle
Sensor typeRotary encoder
Output phasesA,B,Z
Signal TTL
Output pulse20000脉冲/360°
Maximum speed4000°/s

Product size

The dimensions in the following annotations are in millimeters

image.jpeg    image008.jpg    image011.jpg

image009.jpg    image007.jpg    image012.jpg

Connection instructions

Sensor interface features: One end is a CAN interface, and the other end is an OUT interface; Equipped with reset steering angle and torque switches; Equipped with PWR and STA display lights.


Product Accessories

Accessories includedOptional Accessories
350mm diameter steering wheel450mm diameter steering wheel
Power connection cable, 2MSteering wheel fixing fixture, diameter 400-480mm
Universal steering wheel fixing fixture, diameter 320-400mmFunction customization
Single point fixed suction cupData display and setting module
User Guide
Transport box


Ordering Guide

Name Range Type
SENMSW50N.m/100N.m/200N.mwithout limit
SENMSW150N.m/100N.m/200N.mwith limit
