High-Performance Data Acquisition platform

Products

A high-throughput data acquisition platform that integrates computationally intensive sensor data processing and sensor fusion work with control strategy development into a single control unit, helping to build a structured and organized vehicle controller network that greatly improves overall system integrity.

Core Features

· With high performance, high throughput computing vehicle system

· High performance data recording bandwidth and storage bandwidth

· Supports sensor hard synchronization and multiple data synchronization records

· Control and manage all kinds of vehicle systems to achieve safety protection functions

· Perfect system architecture design and first-class energy management algorithm and control strategy

· Highly integrated, scalable, rich interface resources, support custom development

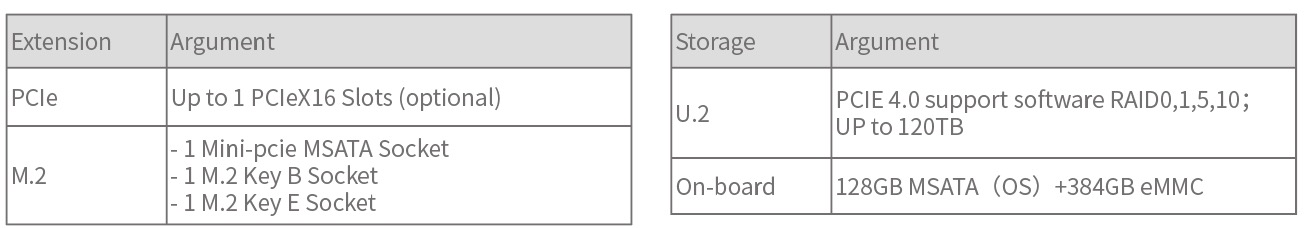

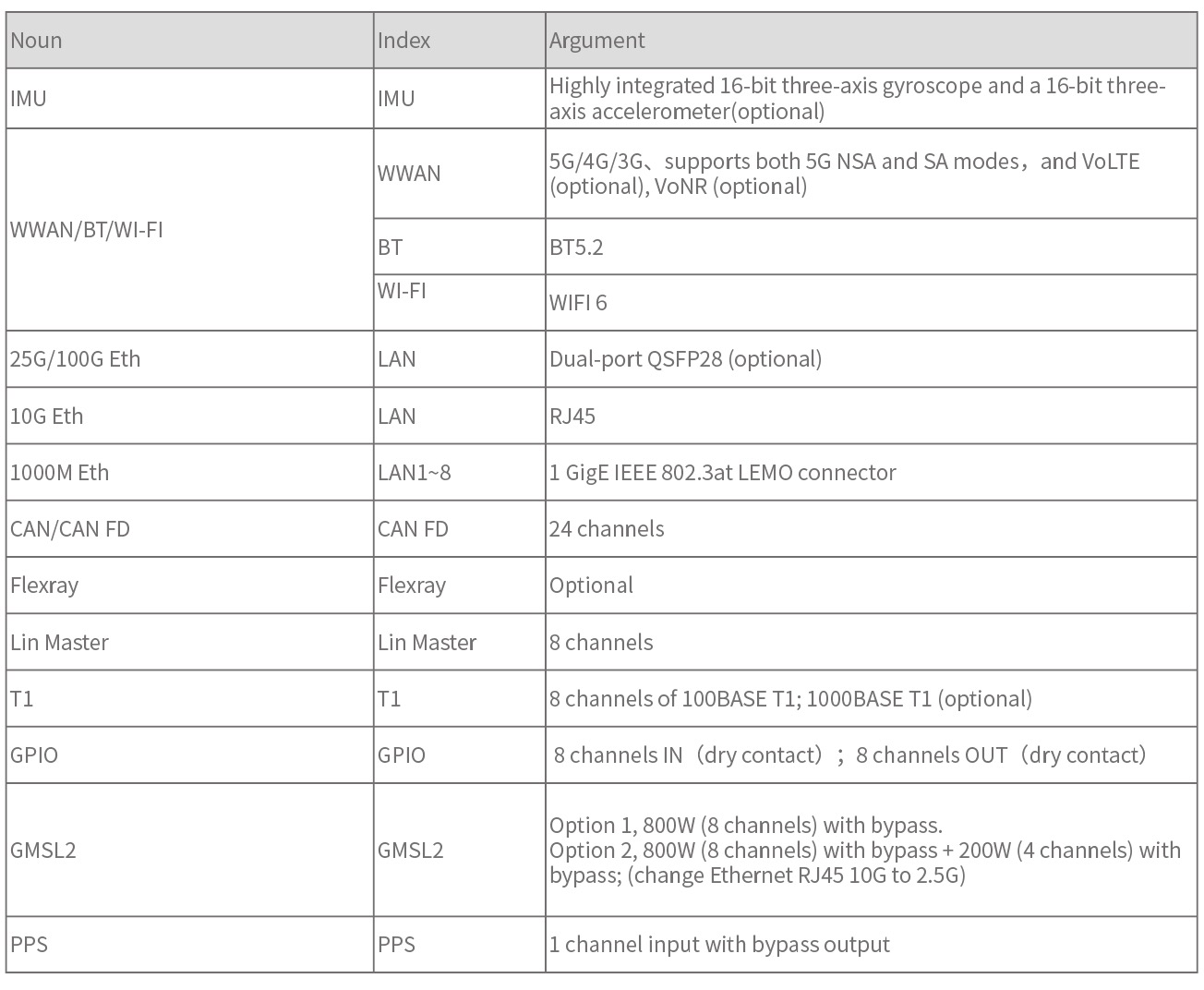

Operation process

Operation process

Application Case

Video acquisition platform

Product Introduction

The video capture server is a new type of high-performance video capture equipment independently developed by Zell Automobile. It can provide a huge data throughput rate, and the captured or intercepted video images can also be captured in accordance with the actual needs of the proportion of video, effectively stored on the server for editing processing, to ensure that the video picture is clear, stable, and has a sense of layer.

Video capture system structure diagram:

Video capture service process:

Core Feature

Product parameter

Multi-channel 4K esolution image injection system

Core Functions

· Based on FPGA technology,  PCIe, support X1, X4, X8

· Support 8-channel GMSL1/GMSL2/FPDLINK video output

· Support injection of YUV422, RAW12, RGB888 image formats

· Support both internal and external trigger modes

· Image frame rate, image resolution can be configured

· Support 8-channel individual and simultaneous injection, flexible and configurable.

· Supports  multiple boards simultaneous injection

· Support MAXIM, TI, ROHM camera serializers, etc

· Supports configurable MIPI timing parameters

· Accurately restore camera timing to ensure injection reliability

Product List

Structural definitions

Product  Parameter

Application Case

Multi-channel 4K resolution image acquisition system

Core Function

· Based on FPGA technology, PCIe, support X1, X4, X8

· Support simultaneous acquisition of 8 GMSL1/2, FPD-Link camera, up to 8MP

· Support the acquisition of YUV422, RAW12, RGB888 image format

· Support reading camera ANC data

· Support accurate hardware timestamp function for each image frame

· Support multi-board mode

· Support external triggering of GPS PPS and LiDAR sync signals.

· Support internal trigger based on built-in programmable trigger generator

· Support simultaneous delayed triggering

· Support MAXIX、Open CV

Product list

Structural definitions

Product  Parameter

Application Case

Multi-channel 4K resolution image streaming system

Core Function

• Based on FPGA technology, PCIe, support X1, X4, X8

• Support 4-Input, 4-output

• Support aequisition of YUV422, RAW12, RGB888 image format

• Support reading camera ANC data

• Support accurate hard ware timestamp function for each image frame

• Support multi-board card mode

• Support IIC transfer and filtering

• Supports external triggering of GPS PPS and LiDAR synchronisation signals

• Supports internal triggering

• Both internal and external triggers support simultaneous triggering and delayed triggering

Product list

Structural definitions

Product  Parameter

Application Case

Gigabit Vehicular Ethernet Switch

Products

The Z1-T1-ETH converter module creates a direct point-to-point link between your Automotive Ethernet ECU and the standard Gigabit system. It transmits data frames directly from the physical layer 1000BASE-T1, and the physical layer 1000BASE-TX with a fixed latency of approximately 2µs.

Features and specifications

· 1000BASE-T1 Automotiue Ethernet.Marvell 88Q2112 Transceiver

· 1000BASE-TX Standard Ethernet, RJ-45 connector

· Pouwerd by Type-C

· Status LEDs

· 2 DIP switches configuration:

     -Master/Slave

     -100/1000 Mbit/s

· Voltage: 5 V

· Dimensions 95 x 65 x 25 mm

Gigabit Car Ethernet Conversion Module

Products

The ZR-8A1-ETH converter module creates a direct point-to-point link between your Automotive Ethernet and any standard Gigabit system. It transmits data frames directly from the physical layer 1000BASE-T1, and the physical layer 1000BASE-TX with a fixed latency of approximately 2µs.

Features and specifications

• 8 1000BASE-T1 Ethernet Marvell 88Q2112 transceiver

• 1-Port 1000BASE-TX Standard Ethernet, RJ-45 connector

• Avionic plug-in power supply

• Status LEDs

• 8 DIP switches for configuration:

     -Master/Slave

     -100/1000 Mbit/s

• Compatible with 12 to 24 volt automotive battery voltage systems

• Operating temperature: -40°C to +85°C

• Dimension 238x165x28mm
