Recelogic recently launched a testing system for the Driver Status Monitoring (DSM) function, which is based on 100Hz VBOX 3i, high-definition video data acquisition HD2, and visual/audio alarm signal sensors to meet the requirements of Euro NCAP 2023 DSM testing.

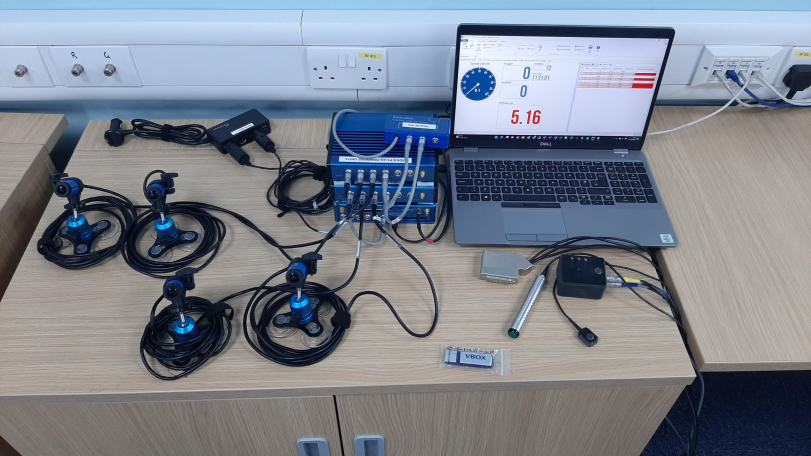

1、 Hardware composition

1: VB3i ADAS host * 1

2: VBOX HD2 * 2

3: RLACS024 splitter * 1

4: Visual alarm sensor * 1

5: Audio alarm sensor * 1

6: RLACS009 manual trigger * 1


2、 System specifications

100 Hz data acquisition and synchronization of 1080p 4 camera video recording;

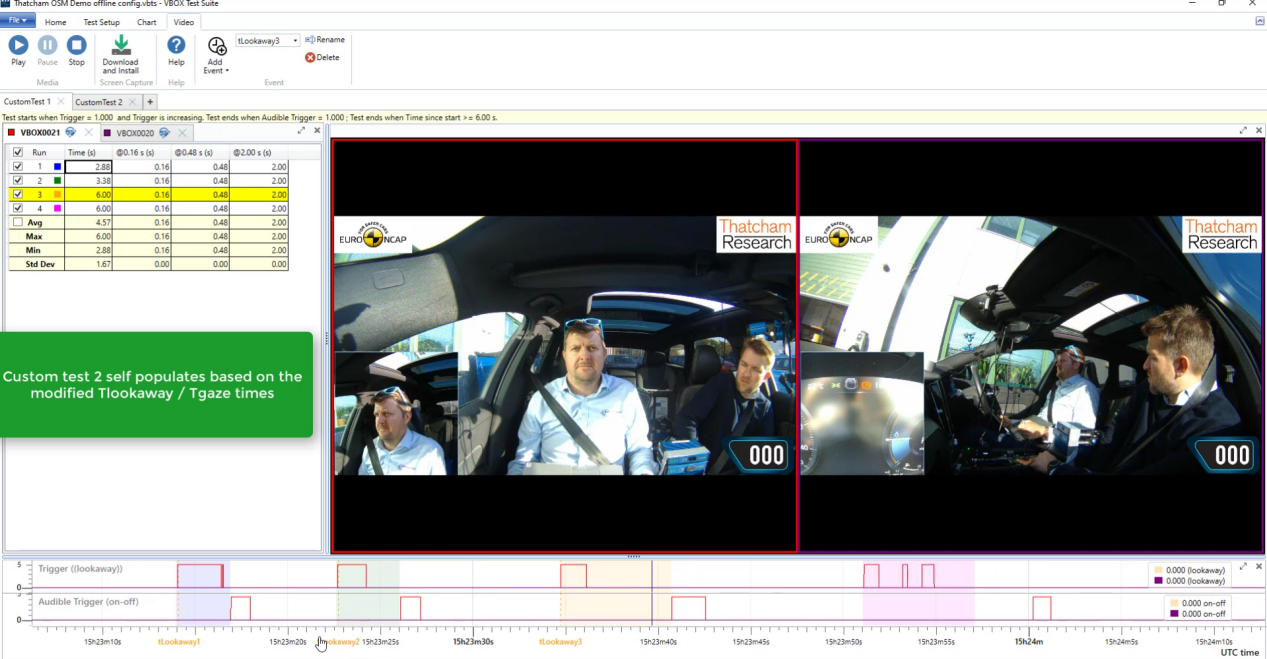

Synchronized camera images for real-time testing and review;

Most tests can immediately determine success/failure;

Boundary case can be processed quickly;

Free, dedicated DSM testing software.

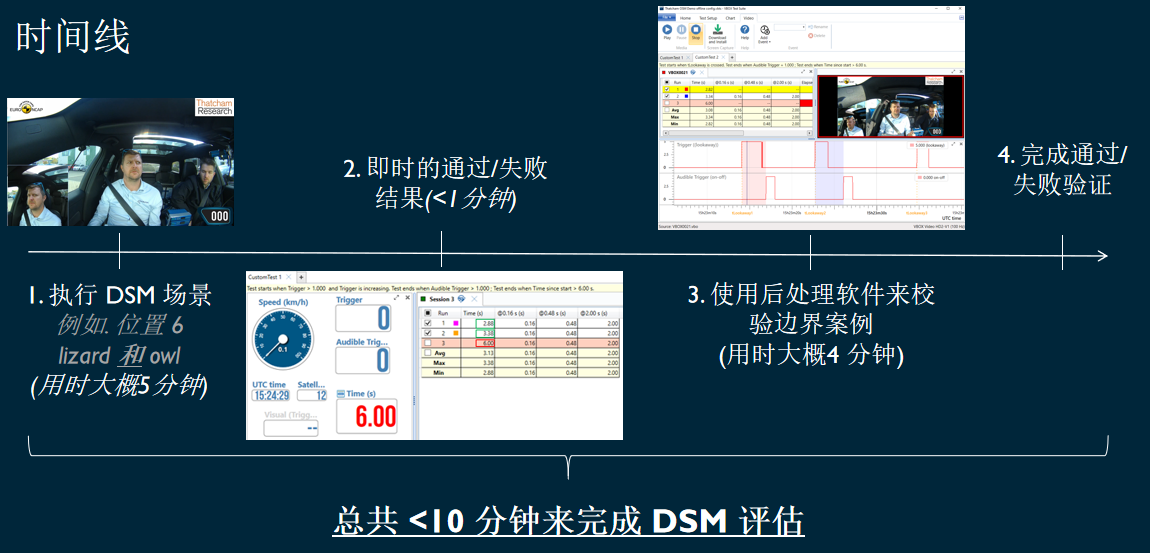

3、 Testing process


4、 Measured parameters

Taway - Driver triggered;

Tgaze - confirmation through video within the software;

Twain - Record through VBOX ADAS visual/audio sensor output or third-party 100Hz CAN input;

Speed, position, time and acceleration throughout the test.


The usual installation position of the camera inside the car is:

A driver with focused attention - eyes/head looking straight ahead of the road;

Gazing position;

Multi-function display (instrument panel) displaying alarm signals;

The user can choose a second gaze position for back and forth testing or looking forward for demonstration purposes.
