NEXDAQ, a data acquisition module from Austria's DEWETRON represented by Guangzhou ZER TEST Technology Co., Ltd., is not only a portable data acquisition device but also a highly integrated and cost-effective data acquisition system.

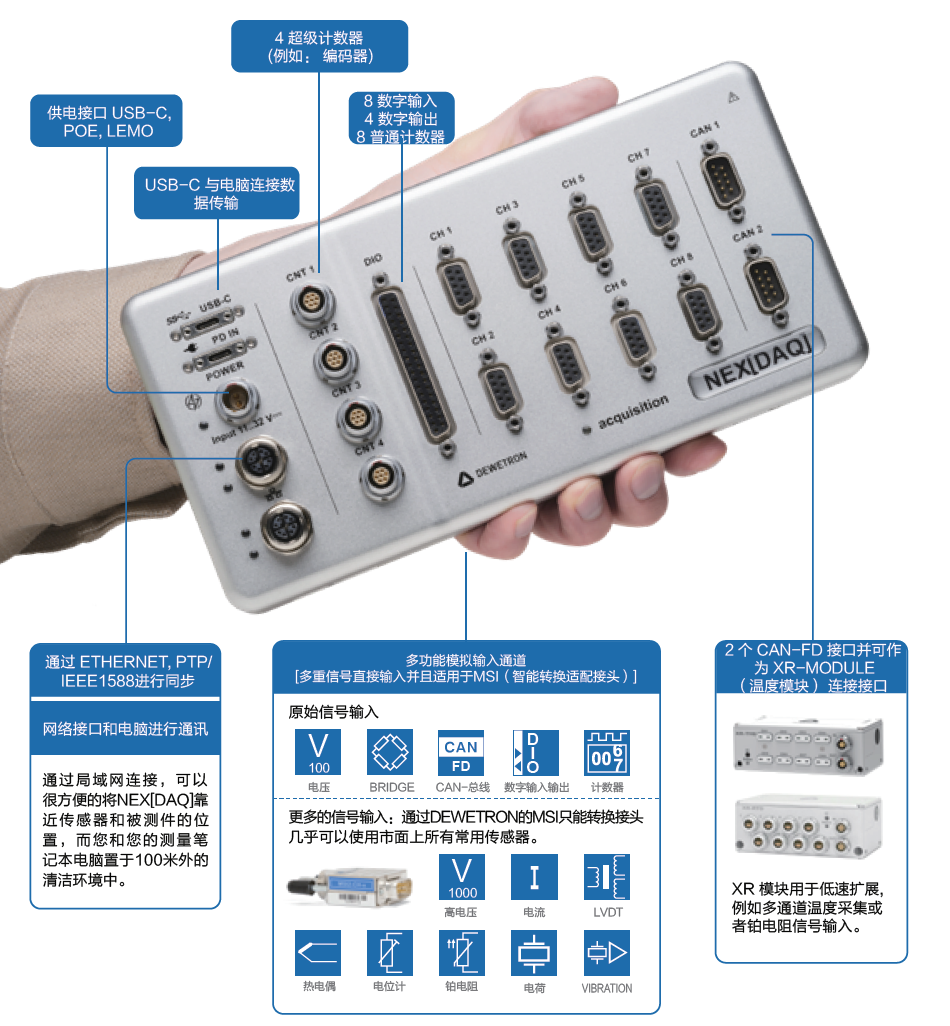

With its compact size, NEXDAQ is designed for use in harsh environments and features a wide variety of acquisition channels capable of collecting analog signals, frequency signals, CAN, CAN FD, and more. Test engineers can use it as a versatile testing tool, similar to a multimeter. To ensure reliable data transmission, it offers both Ethernet and USB 3.0 options for customers to choose from. Keeping up with modern device trends, the USB 3.0 interface uses Type-C for easier cable compatibility.

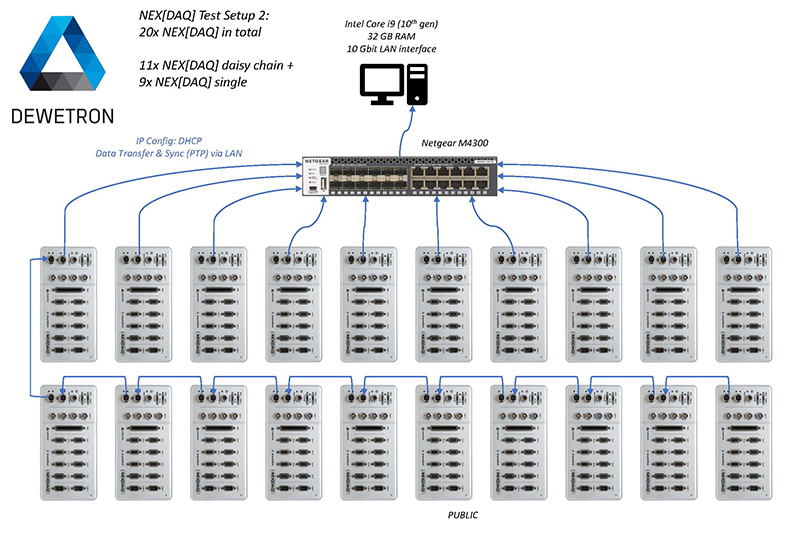

NEXDAQ is equipped with dedicated data transmission and synchronization interfaces, allowing multiple chassis to be connected in series to provide additional test channels while ensuring data synchronization and transmission reliability.
NEXDAQ is available in two versions: one with a 200 kHz sampling rate per channel and another with a 1 MHz sampling rate per channel. Thanks to its ultra-high sampling rate and excellent environmental adaptability, NEXDAQ can be used for applications such as thermal management tests, simple vehicle energy flow tests, ADAS testing, handling stability tests, ripple tests, low-voltage electrical performance tests, and shaft center trajectory tests. With an ultra-high protection rating of IP67, the device can be deployed in extremely harsh environments, such as in the construction machinery industry.
NEXDAQ Specifications:
8 analog channels:
200 kHz/channel or 1 MHz/channel
24-bit resolution
Directly measures voltage (0–100V) and bridge signals (full-bridge, half-bridge)
Accuracy: ±0.02% of reading ±0.02% of range ±20 µV
IIR low-pass filter with Bessel and Butterworth options, selectable filter orders (2, 4, 6, 8)
D-SUB9 connector
Programmable sensor excitation voltage: 1–24V

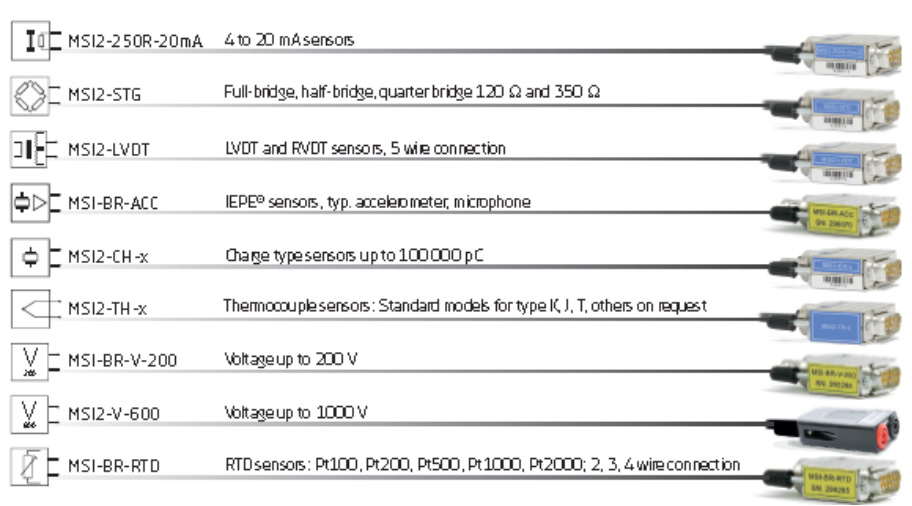

Supports MSI2 smart adapter for measuring voltage (0–200V, 0–1000V), 4–20 mA current, strain (1/4 bridge), LVDT and RVDT sensors, charge, IEPE, K/J/T-type thermocouples, RTD (PT100, PT200, PT500, PT1000, PT2000), and more.
12 timer (frequency/RPM) channels:
Supports event mode, frequency mode, duty cycle mode, sensor mode, and other measurement modes.
2 CAN/CAN FD channels:
Supports CAN 2.0 and CAN FD
Configurable 120 Ω built-in termination resistor
Capable of online CAN data acquisition and offline DBC or ARXML file parsing
Built-in OXYGEN software for data acquisition and analysis, including spectrum analysis, filtering, integration, statistics, order analysis, strain analysis, sound level metering, noise measurement, electrical power analysis, octave analysis, modal analysis, and more.
As a highly portable and integrated data acquisition system, NEXDAQ offers exceptional value with its competitive pricing, making it the ideal choice for your testing needs!
